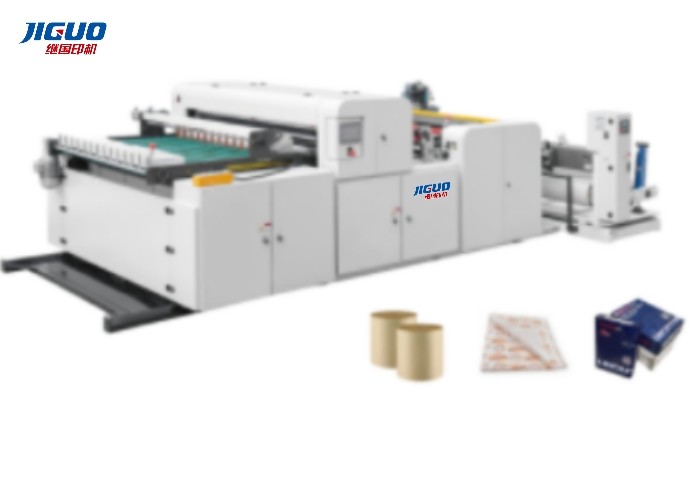

1100mm A4 Paper Cutting Machine PLC Control Roll To Sheet Cutting Machine

Name: 1100mm A4 Paper Cutting Machine PLC Control Roll To Sheet Cutting Machine
Brand: JIGUO
Price: 40000 USD

Buy cheap 1100mm A4 Paper Cutting Machine PLC Control Roll To Sheet Cutting Machine product

Brand Name : JIGUO

Model Number : ZWC-1100D A4 Paper Cutting Machine

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1set

Price : $40000~$50000

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 45days

Packaging Details : wooden case

Applicable Industries : Manufacturing Plant, A4 paper cutting and packing machine

Product Type : Paper cutting machine

Max Diameter of unwinding roll : φ1400mm

Max material width : 1100mm

Feeding rolls quantity : One rolls

Contact Now

JIGUO ZWC-1100D A4 Paper Cutting Machine Roll Paper To Sheet

One.Characteristic & Feature:

Usage:

The HQJ-1100 A4 Cutting Machine is suitable to convert jumbo rolls to sheets,specially cutting and slitting 30-450 gsm cardboard paper,craft paper,coated paper,laminated craft paper,self adhesive paper.It is suitable for A4 paper,food packaging business,printing industry.

Characteristic:

The machine adopts servo motor,frequency controlling speed.PLC Control System,including automatic tension control,automatic counting,setting cutting size,automatic stop by setting time&number and other many functions.
Unwinding jumbo roll part use automatic air shaft(3/6 inch,optional) or shaft-less(3/6 inch,optional)
Unwinding jumbo roll part adopts EPC system,automatic correcting web material position and keeping high cutting precision.
Machine shelf adopt casting steel,guillotine knife use heavy casting structure,traction rollers use static balance processing aluminum rollers.
Automatic stacking&trimming finished sheets,using two stage motors to convey sheets forward.Workers easily take the finished products out.

A4 paper cutting and packing machine technical parameter

Model	ZWC-1100D A4 paper cutting machine
Max Diameter of unwinding roll	φ1400mm
Max material width	1100mm
Cutting length	20-1200mm,
Cutting speed	20-150times/min
Material GSM	30-300gsm
Cutting accuracy	±0.2mm
Feeding rolls	1
Total power	18kw
Voltage	380V 50HZ 3phase
Weight	5200kg
Dimension	8500×2500×2200

A4 paper cutting and packing machine Local introductio
